簡要說明:煤礦用阻燃控制電纜

詳細介紹:　　

執行標準 Standards implemented : Q/3210HL33.1-Q/3210HL33.2-2005

型號、名稱及使用范圍 Model descriptions and Use scope

型 號Model 名 稱
Descriptions 使 用 范 圍
Scope of application MKVV 煤礦用聚氯乙烯絕緣聚氯乙烯護套控制電纜
PVC insulated PVC sheathed control cables for use in mines 礦井中一般控制系統中
General control system in mines MKVV22 煤礦用聚氯乙烯絕緣鋼帶鎧裝聚氯乙烯護套控制電纜
PVC insulated steel tape armored PVC sheathed control cables for use in mines 礦井中一般控制系統中能承受一定沖擊力和壓力
General control system cables are under some impact and pressure in the mine MKVV32 煤礦用聚氯乙烯絕緣細鋼絲鎧裝聚氯乙烯護套控制電纜
PVC insulated fine steel wire armored PVC sheathed control cables for use in mines 礦井中一般控制系統能承受一定拉力
General control system cables are under some pulling force in the mine MKVV42 煤礦用聚氯乙烯絕緣粗鋼絲鎧裝聚氯乙烯護套控制電纜
PVC insulated thick steel wire armored PVC sheathed control cables for use in mines 礦井中一般控制系統能承受較大拉力
General control system cables are under big impact pulling force in the mine MKVVP 煤礦用聚氯乙烯絕緣銅絲編織屏蔽聚氯乙烯護套控制電纜
PVC insulated copper wire weave shielded PVC sheathed control cables for use in mines 礦井中強電磁干擾區作一般控制
Strong electromagnetism interference region as general control in mines MKVVP2 煤礦用聚氯乙烯絕緣銅帶屏蔽聚氯乙烯護套控制電纜
PVC insulated copper tape shielded PVC sheathed control cables for use in mines 礦井中強電磁干擾區作一般控制
Strong electromagnetism interference region as general control in mines MKVVR 煤礦用聚氯乙烯絕緣聚氯乙烯護套軟控制電纜
PVC insulated PVC sheathed soft control cables for use in mines 礦井中要求移動場合作一般控制
Request migration situation as general control in mines MKVVRP 煤礦用聚氯乙烯絕緣銅絲編織屏蔽聚氯乙烯護套軟控制電纜
PVC insulated copper wire weave shielded PVC sheathed soft control cables for use in mines 礦井中要求移動且強電磁干擾區作一般控制
Request migration situation and strong electromagnetism interference region as general control in mines

使用特性 Service characteristics

電纜導體長期允許的工作溫度
Long-term service temperature of the cable conductor 70℃ 額定電壓U0/U
Rated voltage U0/U 450/750V 電纜敷設溫度
Cable laying temperature ≥0℃ 電纜的最小彎曲半徑 Minimun bending radius 無鎧裝層的≥電纜外徑的6倍，有鎧裝層或銅帶屏蔽的≥電纜外徑的12倍，
Non armored ≥outer diameter of cable 6 times armored layer or copper tape shielded≥outer diameter of cable 12times
有屏蔽層的軟電纜≥電纜外徑的6倍
Shielded layer soft cable ≥ outer diameter of cable 6 times

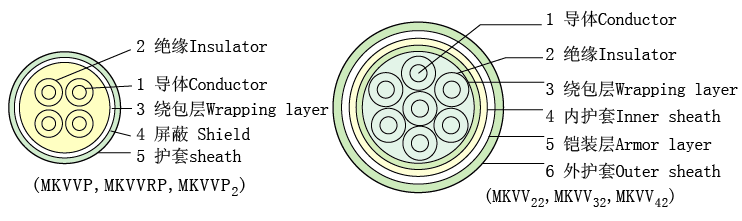

電纜結構示意圖

IIIustration of cable structure

型 號 Model 額定電壓 V
Rated voltage 導體標稱截面 mm² Conductor nominal sectional 0.5 0.75 1.0 1.5 2.5 4 6 10 芯 數 Core number MKVV MKVVP 450/750 - 2-61 2-14 2-10 MKVVP2 - 4-61 2-14 4-10 MKVV22 - 4-61 2-14 4-10 MKVV32 - 7-61 4-61 2-14 4-10 MKVV42 - 16-61 7-61 2-14 4-10 MKVVR 4-61 - - MKVVRP 4-61 4-48 - -

注Note：推薦的芯數系列Recommendation core series：2、3、4、5、7、8、10、12、14、16、19、24、27、30、37、44、48、52、61芯

電纜主要技術性能 Major technical performances

1、 電纜導體直流電阻及絕緣電阻 Cable conductor DC resistance and insulated resistance

標稱截面
nominal sectional
(mm²) 導體結構
Conductor structure +20℃導體直流電阻(≤Ω/Km)
Conductor DC resistance at 20℃ +20℃絕緣電阻(≥MΩ·Km)
Insulated resistance at 20℃ 種 類Type 根數/單線標稱直徑
core No./ single nominaldiameter 不鍍錫
Untinned 鍍錫
Tinned 0.5 5 16/0.20 39.0 40.1 15 0.75 1 1/0.97 24.5 24.8 12 0.75 2 7/0.37 24.5 24.8 12 0.75 5 24/0.20 26.0 26.7 12 1.0 1 1/1.13 18.1 18.2 11 1.0 2 7/0.43 18.1 18.2 10 1.0 5 32/0.20 19.5 20.0 10 1.5 1 1/1.38 12.1 12.2 11 1.5 2 7/0.52 12.1 12.2 10 1.5 5 30/0.52 13.3 13.7 10 2.5 1 1/1.78 7.41 7.56 10 2.5 2 7/0.68 7.41 7.56 9 2.5 5 50/0.25 7.98 8.21 9 4 1 1/2.25 4.61 4.70 8.5 4 2 7/0.85 4.61 4.70 7.7 6 1 1/2.76 3.08 3.11 7 6 2 7/1.04 3.08 3.11 6.5 10 2 7/1.35 1.83 1.84 6.5

2、電纜其它主要技術性能 Other major technical performances

型號Model:MKVV22、MKVV32、MKVV42、MKVV、MKVVR、MKVVP、MKVVP2、MKVVRP

序 號
Serial number 項目
Items 技術性能
Technical performances 1 +20℃線芯直流電阻(≤Ω/Km) Core DC resistance at 20℃ 見上表 See above table 2 +20℃絕緣電阻(≥MΩ·Km) Insulation resistance at 20℃ 見上表 See above table 3 5min耐工頻交流電壓試驗
5min power frequency alternating current pressure test 芯-芯Core-Core
芯-屏蔽Core-Shield
芯-鎧裝 Core-Armor 3000V不擊穿 3000V no breakdown 4 單根垂直燃燒試驗 Single wire burning test MT386 5 成束燃燒試驗 Group burning test 符合GB/T18380標準中B類成束燃燒試驗要求
Conforms to GB/T18380 standard B kind group burning test
