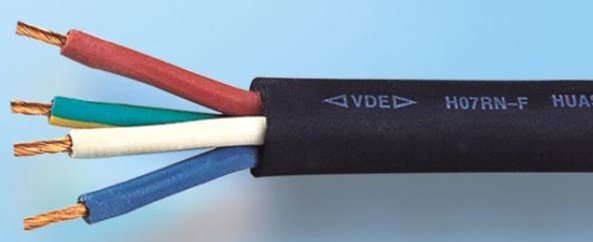

H07RN-F(H05RN-F)橡套軟電纜
H07RN-F(H05RN-F)橡套軟電纜
應用范圍 : 交流額定電壓450/750V及以下的電動工具和移動電器設備的電源連接，且能承受較大的機械外力作用?？捎糜诟稍锖统睗竦氖覂?nèi)及室外，也適合固定安裝。該電纜主要作為尾纜用于為可移動備提供能量。加厚的橡膠電纜不僅性能提高，而且極易安裝。PCP橡膠電纜同時還具有防油防燃的性能。
技術參數 : 額定電壓: 450/750V
測試電壓 : 2500V
工作溫度: 長期工作溫度不超過65℃
彎曲半徑: 5-6倍電纜直徑
相關標準 : 根據 DIN VDE 282-4，BS6500標準生產
|
 |
|
線芯數×導體標稱截面
n × mm² |
絕緣壁厚規定尺寸mm
|
護套壁厚規定尺寸mm
|
外徑的平均值
|
Reference weight
kg/km |
|
|
最小尺寸
|
最大尺寸
|
||||
|
1 × 1.5
|
0.8
|
1.4
|
5.7
|
7.1
|
59.0
|
|
1 × 2.5
|
0.9
|
1.4
|
6.3
|
7.9
|
74.0
|
|
1 × 4
|
1.0
|
1.5
|
7.2
|
9.0
|
99.0
|
|
1 × 6
|
1.0
|
1.6
|
7.9
|
9.8
|
129.0
|
|
1 × 10
|
1.2
|
1.8
|
9.5
|
11.9
|
200.0
|
|
1 × 16
|
1.2
|
1.9
|
10.8
|
13.4
|
279.0
|
|
1 × 25
|
1.4
|
2.0
|
12.7
|
15.8
|
396.0
|
|
1 × 35
|
1.4
|
2.2
|
14.3
|
17.9
|
540.0
|
|
1 × 50
|
1.6
|
2.4
|
16.5
|
20.6
|
719.0
|
|
1 × 70
|
1.6
|
2.6
|
18.6
|
23.3
|
947.0
|
|
1 × 95
|
1.8
|
2.8
|
20.8
|
26.0
|
1.230.0
|
|
1 × 120
|
1.8
|
3.0
|
22.8
|
28.6
|
1.520.0
|
|
1 × 150
|
2.0
|
3.2
|
25.2
|
31.4
|
1.887.0
|
|
1 × 185
|
2.2
|
3.4
|
27.6
|
34.4
|
2.300.0
|
|
1 × 240
|
2.4
|
3.5
|
30.6
|
38.3
|
2.960.0
|
|
1 × 300
|
2.6
|
3.6
|
33.5
|
41.9
|
3.585.0
|
|
|
|
|
|
|
|
|
2 × 1
|
0.8
|
1.3
|
7.7
|
10.0
|
89.0
|
|
3 × 1
|
0.8
|
1.4
|
8.3
|
10.7
|
111.0
|
|
4 × 1
|
0.8
|
1.5
|
9.2
|
11.9
|
146.0
|
|
5 × 1
|
0.8
|
1.6
|
10.2
|
13.1
|
192.0
|
|
|
|
|
|
|
|
|
2 × 1.5
|
0.8
|
1.5
|
8.5
|
11.0
|
128.0
|
|
3 × 1.5
|
0.8
|
1.6
|
9.2
|
11.9
|
157.0
|
|
4 × 1.5
|
0.8
|
1.7
|
10.2
|
13.1
|
192.0
|
|
5 × 1.5
|
0.8
|
1.8
|
11.2
|
14.4
|
238.0
|
|
7 × 1.5
|
0.8
|
2.5
|
13.4
|
17.5
|
371.0
|
|
12 × 1.5
|
0.8
|
2.9
|
17.6
|
22.4
|
516.0
|
|
18 × 1.5
|
0.8
|
3.2
|
20.7
|
26.3
|
770.0
|
|
19 × 1.5
|
0.8
|
3.3
|
21.0
|
26.3
|
788.0
|
|
24 × 1.5
|
0.8
|
3.5
|
24.3
|
30.7
|
968.0
|
|
|
|
|
|
|
|
|
2 × 2.5
|
0.9
|
1.7
|
10.2
|
13.1
|
177.0
|
|
3 × 2.5
|
0.9
|
1.8
|
10.9
|
14.0
|
217.0
|
|
4 × 2.5
|
0.9
|
1.9
|
12.1
|
15.5
|
269.0
|
|
5 × 2.5
|
0.9
|
2.0
|
13.3
|
17.0
|
329.0
|
|
7 × 2.5
|
0.9
|
2.5
|
14.4
|
20.0
|
499.0
|
|
8 × 2.5
|
0.9 |
2.6
|
15．7
|
21.5
|
590.0
|
|
12 × 2.5
|
0.9
|
2.9
|
17.6
|
22.4
|
719.0
|
|
18 × 2.5
|
0.9
|
3.2
|
20.7
|
26.3
|
1.068.0
|
|
19 × 2.5
|
0.9
|
3.4
|
22.0
|
28.0
|
1.068.0
|
|
24 × 2.5
|
0.9
|
3.5
|
24.3
|
30.7
|
1.400.0
|
|
|
|
|
|
|
|
|
2 × 4
|
1.0
|
1.8
|
11.8
|
15.1
|
249.0
|
|
3 × 4
|
1.0
|
1.9
|
12.7
|
16.2
|
298.0
|
|
4 × 4
|
1.0
|
2.0
|
14.0
|
17.9
|
373.0
|
|
5 × 4
|
1.0
|
2.2
|
15.6
|
19.9
|
466.0
|
|
|
|
|
|
|
|
|
2 × 6
|
1.0
|
2.0
|
13.1
|
16.8
|
327.0
|
|
3 × 6
|
1.0
|
2.1
|
14.1
|
18.0
|
407.0
|
|
4 × 6
|
1.0
|
2.3
|
15.7
|
20.0
|
514.0
|
|
5 × 6
|
1.0
|
2.5
|
17.5
|
22.2
|
640.0
|
|
|
|
|
|
|
|
|
2 × 10
|
1.2
|
3.1
|
17.7
|
22.6
|
586.0
|
|
3 × 10
|
1.2
|
3.3
|
19.1
|
24.2
|
716.0
|
|
4 × 10
|
1.2
|
3.4
|
20.9
|
26.5
|
898.0
|
|
5 × 10
|
1.2
|
3.6
|
22.9
|
29.1
|
1.107.0
|
|
|
|
|
|
|
|
|
2 × 16
|
1.2
|
3.3
|
20.2
|
25.7
|
810.0
|
|
3 × 16
|
1.2
|
3.5
|
21.8
|
27.6
|
1.008.0
|
|
4 × 16
|
1.2
|
3.6
|
23.8
|
30.1
|
1.253.0
|
|
5 × 16
|
1.2
|
3.9
|
26.4
|
33.3
|
1.564.0
|
|
|
|
|
|
|
|
|
2 × 25
|
1.4
|
3.6
|
24.3
|
30.7
|
1.157.0
|
|
3 × 25
|
1.4
|
3.8
|
26.1
|
33.0
|
1.451.0
|
|
4 × 25
|
1.4
|
4.1
|
28.9
|
36.6
|
1.846.0
|
|
5 × 25
|
1.4
|
4.4
|
32.0
|
40.4
|
2.291.0
|
|
|
|
|
|
|
|
|
3 × 35
|
1.4
|
4.1
|
29.3
|
37.1
|
1.901.0
|
|
4 × 35
|
1.4
|
4.4
|
32.5
|
41.1
|
2.393.0
|
|
5 × 35
|
1.4
|
4.7
|
36.2
|
45.8
|
2.684.0
|
|
|
|
|
|
|
|
|
3 × 50
|
1.6
|
4.5
|
34.1
|
42.9
|
2.580.0
|
|
4 × 50
|
1.6
|
4.8
|
37.7
|
42.5
|
3.284.0
|
|
5 × 50
|
1.6
|
5.1
|
41.5
|
47.0
|
3.950.0
|
|
|
|
|
|
|
|
|
3 × 70
|
1.6
|
4.8
|
38.4
|
48.3
|
3.386.0
|
|
4 × 70
|
1.6
|
5.2
|
42.7
|
54.0
|
4.331.0
|
|
5 × 70
|
1.6
|
5.6
|
46.8
|
50.0
|
4.893.0
|
|
|
|
|
|
|
|
|
3 × 95
|
1.8
|
5.3
|
43.3
|
54.0
|
4.483.0
|
|
4 × 95
|
1.8
|
5.9
|
48.4
|
61.0
|
5.712.0
|
|
3 × 120
|
1.8
|
5.6
|
47.4
|
60.0
|
5.182.0
|
|
4 × 120
|
1.8
|
6.0
|
53
|
66.0
|
6.828.0
|
|
|
|
|
|
|
|
|
4 × 150
|
2.0
|
6.5
|
58
|
73.0
|
8.319.0
|
|
4 × 185
|
2.2
|
7.0
|
64
|
80.0
|
10.062.0
|
|
4 × 240
|
2.4
|
7.7
|
72
|
91.0
|
13.125.0
|
| H05RN-F 電纜結構 |
| 導體截面：0.75-300mm2 |
| 額定電壓：300/500v |
| H05RN-F型一般性指標 | ||||
| 1 | 2 | 3 | 4 | 5 |
| 線芯數和導體標稱截面 | 絕緣壁厚規定尺寸 | 護套壁厚規定尺寸 | 外徑的平均值 | |
| 最小尺寸 | 最大尺寸 | |||
| mm2 | mm | mm | mm | mm |
| 2×0.75 | 0.6 | 0.8 | 5.7 | 7.4 |
| 2×1 | 0.6 | 0.9 | 6.1 | 8.0 |
| 3×0.75 | 0.6 | 0.9 | 6.2 | 8.1 |
| 3×1 | 0.6 | 0.9 | 6.5 | 8.5 |
